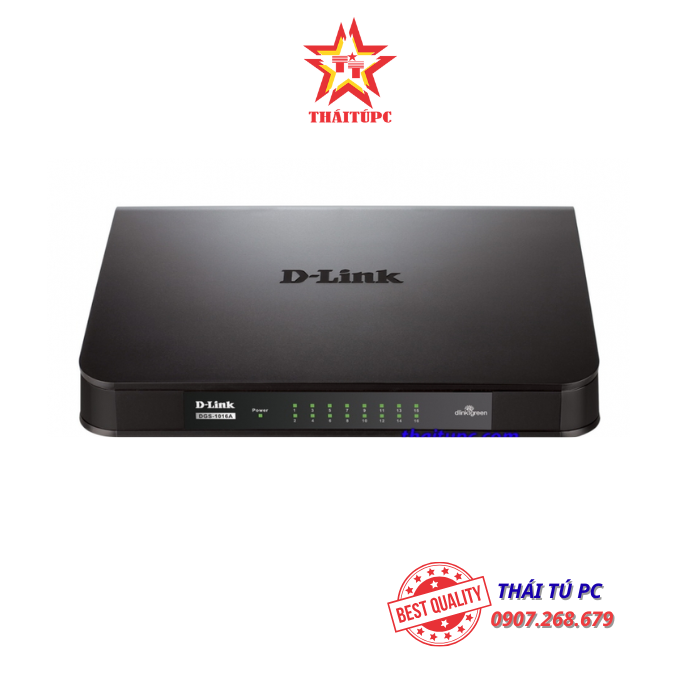

16-Port Gigabit Switch D-Link DGS-1016A (10/100/1000) (Vỏ nhựa)

Number of Ports

Sixteen 10/100/1000 Gigabit ports

Standards

IEEE 802.3, 10BASE-T Ethernet

IEEE 802.3u, 100BASE-TX Fast Ethernet

IEEE 802.3ab, 1000BASE-T Gigabit Ethernet

ANSI/ IEEE 802.3 NWay auto-negotiation

IEEE 802.3x Flow Control

Data Tranfer Rates

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Gigabit Ethernet: 2000 Mbps (full duplex)

Network Cables

10BASE-T: UTP CAT 3, 4, 5/5e (100 m max), EIA/TIA-586 100-ohm STP (100 m max)

100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max), EIA/TIA-568 100-ohm STP (100 m max

D-Link Green Features

IEEE 802.3az Energy Efficient Ethernet (EEE)

Link status detection power saving

Cable length detection power saving

RoHS Compliance

LAN Features

Back pressure at half-duplex operation

Auto MDI/MDIX

Wire speed reception and transmission

Store-and-Forward switching method

8K MAC addresses

2 Mbits RAM for data buffering

Jumbo Frames: 9216 Bytes

Switching Capacity 32 Gbps

Port Packet Filtering

10M: 14,880 pps

100M: 148,800 pps

1000M: 1,488,000 pps

LEDs

Power LED

16 Link/Activity/ Speed LEDs (one per port)

Power Inputs

Power Inputs Switching 12V/ 1A level V power adapter

Power Consumption

Power on (standby): 2.64 Watts

Power max: 9 Watts

MTBF

319,267 hours

Certifications

FCC Class A

ICES-003 Class A

CE Class A

C-Tick Class A

CB

CUL

Dimensions

231 x 158 x 46 mm

Weight

0.58 kg
